ARCHON TYPE B

DPM Telescopic Recoil Reduction System for ARCHON FIREARMS TYPE B 4.3"BARREL

The DPM Telescopic Recoil Reduction System is a direct replacement for the stock recoil rod and does not change the configuration of the gun.

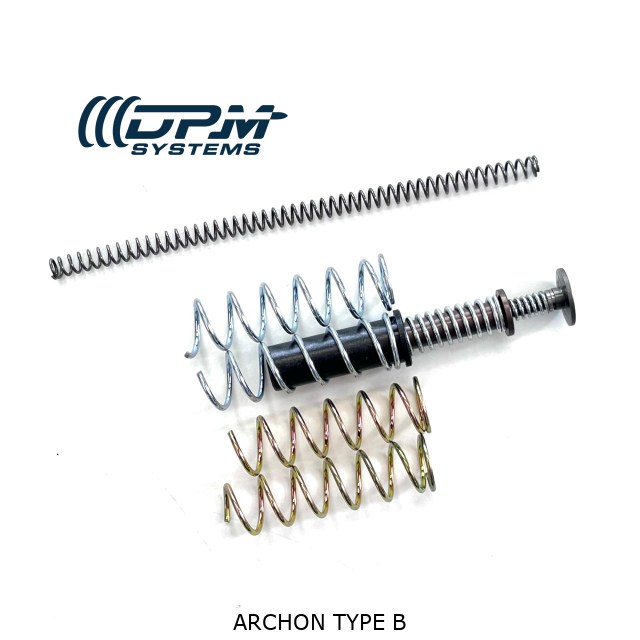

The system includes 4 external springs (2 x 1.15mm wire diameter and 2 x 1.2mm wire diameter), all with different power rates.

 **As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Power Rates

Soft Springs 1.15mm

Slide on the battery (idle position)

• Short:  3.8kg / 8.3 lbs
• Long:  4kg / 8.8lbs

Slide full open position (approx.)

• Short:  5 kg / 11lbs
• Long:  5.5 kg / 12.1lbs

Standard Springs 1.2mm

Slide on the battery (idle position)

• Short:  4kg / 8.8lbs
• Long:  4.4kg / 9.7lbs

Slide full open position (approx.)

• Short: 6 kg / 13.2lbs
• Long: 6.5 kg / 14.3lbs

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy

Lifetime Warranty.

For changes to features, like comp set-up, threaded barrels, slide conversions etc., contact us via email at [email protected] before placing your order. In some cases, we need to determine whether a custom product is required.

Millions  of our patented products are in service to military, law enforcement, sports and civilian firearms around the world.

How it works

Made in Greece - EU.
